Product Definition
The innovative Westglass PNLC Film Series (Reverse Smart Dimming Film) employs revolutionary electro-optical technology with a reverse logic compared to conventional PDLC films: it stays optically transparent when power off and instantly activates a frosted state when power on. By precisely stacking flexible ITO conductive layers, polymer-dispersed liquid crystal (PDLC) layers, and impact-resistant PET substrates, it uses electric fields to control liquid crystal molecular orientation for instantaneous state switching. With self-adhesive installation, it directly applies to existing glass surfaces for smart upgrades, serving applications like architectural curtain walls, medical cleanrooms, and smart homes.
Why Westglass?
As an 8-year veteran in smart films, Westglass offers:
- Custom Electrode Sheets: Tailored to window dimensions with integrated electrodes.
- Roll Materials: Standard rolls (1.2/1.45m×30/50m) for large-scale projects.
- Custom Shapes: Laser-cut with ±0.5mm precision for circles, polygons, and other special contours.
- Rigorous Quality Control: Enforces a three-layer standard: 100% roll inspection → oven baking tests → sheet power aging verification.
- Expedited Fulfillment: Standard rolls ship within 24 hours; custom orders ready in 3 business days.
Core Value Proposition
1. Intelligent Privacy Management
- Reverse Light Control: Zero-energy transparent default mode; power on triggers ≥90% haze for privacy—ideal for commercial windows and open offices needing both display and sudden privacy.
- Instant Response: Transitions from clear to fully frosted in milliseconds.
2. Protective Performance Matrix
- Safety & Explosion-Proof: Holds >95% of shattered glass fragments upon impact.
- Energy Efficiency: Only consumes power when privacy is needed, reducing overall energy use by 50%+ vs. traditional PDLC films.
- UV/IR Protection: Blocks 99% UV and ≥60% IR, slowing furniture aging.
- Digital Interaction:
- Projection-Ready: Frosted surface acts as a uniform projection screen for digital signage and immersive exhibitions.
- Multi-Channel Control: Supports remote, voice, app, and smart home system integration.
3. Universal Adaptability
- Easy Installation: Self-adhesive design fits all glass surfaces, up to 1.5m width, with no structural removal—cost-effective renovation.
- DIY-Friendly: No professional tools needed; upgrade old glass in 1 hour.
Scenario-Based Solutions
| Category | Typical Applications | Core Value |
| Architecture | Curtain walls, skylights, office partitions, hotel bathrooms | Replaces blinds/curtains for smart light and privacy control. |
| Transportation | Car sunroofs, subway doors, aircraft windows, cruise observation windows | Shatter resistance, UV protection, and modern tech aesthetics. |
| Commercial | Exhibition windows, conference room glass, mall atrium partitions | Dynamic ad projections and one-touch private meeting modes. |
| Smart Homes | Balcony floor-to-ceiling windows, bathroom partitions, home theater screens | Privacy, energy savings, and immersive AV experiences. |
| Public Facilities | Hospital observation windows, bank ballistic glass, airport security screens | Safety, UV blocking, and emergency privacy shielding. |
Transform your space with Westglass PNLC Film—where innovation meets intelligent design.
Contact us today for custom solutions.
Technical Parameters
| WEST Smart Film Series Same Technical Specifications |
| Item No. | Mode | Unit | Tolerance | Specification |
| Optical Performance | Viewing Angle | On | ° | / | ＞140 |
| Electrical performance | Operate Voltage | On | AC/V | / | 48～65(50/60HZ) |
| Response Time | On→Off | ms | / | ≤200 |
| Off→On | ms | / | ≤10 |
| Power Consumption | On | W/m2 | / | ＜5.0 |
| Heat shrinkage | TD | / | % | / | ≤0.1 |
| MD | / | % | / | ≤0.4 |
| UV Rejection | On/Off | % | / | ≥99 |
| Color Difference △E(reflection) | Off | CIELAB | / | ≤2.5 |
| Working Temperature | / | ℃ | / | -20～75℃ |
| Storage Temperature | / | ℃ | / | -20～70℃ |
| Storage Humidity | / | % | / | 20～60 |
| Lifespan | On | h | / | ＞80000 |
| VLT 91% White Adhesive Smart Film Technical Specifications |
| Item No. | Mode | Unit | Tolerance | Specification |
| Optical performance | VLT | On | % | ±1 | 90 |
| Off | % | / | ＞65 |
| Haze | On | % | ±0.5 | 2.5 |
| Off | % | / | ＞98 |
| Thickness | / | μm | ±5 | 395 |
| VLT 89% Adhesive Smart Film Technical Specifications |
| Item | Mode | Unit | Tolerance | Specification |
| Optical performance | VLT | On | % | / | 87 |
| Off | % | / | 72 |
| Haze | On | % | / | ≤4.0 |
| Off | % | / | ＞98 |
| Thickness | / | μm | ±10 | 479 |
| VLT 89% Non-Adhesive Smart Film Technical Specifications |
| Item | Mode | Unit | Tolerance | Value |
| Optical Performance | VLT | On | % | / | 88 |
| Off | % | / | 72 |
| Haze | On | % | / | ≤3 |
| Off | % | / | ＞98 |
| Thickness | / | μm | ±3 | 394 |
| Smart PNLC Film Technical Specifications |
| Item | Mode | Unit | Tolerance | Specification |
| Optical Performance | VLT | Off | % | / | 88 |
| ON | % | / | 9 |
| Parallel Light Transmission | Off | % | / | 80 |
| On | % | / | 7 |
| Haze | Off | % | / | 10 |
| On | % | / | 92 |
| Electrical Performance | Response Time | On/Off | S | / | 0.5 |
| Weather Resistance Test | / | Hours | / | 2000 |
| Thickness | / | μm | ±10 | 260 |
| Silicon Peeling Force | / | g | / | 10 |
| VLT 83% Non-Adhesive Smart Film Technical Specifications |
| Item No. | Mode | Unit | Tolerance | Specification |
| Optical Performance | VLT | On | % | ±1 | 83 |
| Off | % | / | ＞55 |
| Haze | On | % | ±0.5 | 4.1 |
| Off | % | / | ＞96 |
| Electrical Performance | Response Time | On→Off | ms | / | ≤100 |
| Off→On | ms | / | ≤10 |
| Thickness | / | μm | ±5 | 395 |
| VLT 83% White Adhesive Smart Film Technical Specifications |
| Item No. | Mode | Unit | Tolerance | Specification |
| Optical Performance | VLT | On | % | ±1 | 83 |
| Off | % | / | ＞55 |
| Haze | On | % | ±0.5 | 4.3 |
| Off | % | / | ＞96 |
| Electrical performance | Operate Voltage | On | AC/V | / | 48～65(50/60HZ) |
| Response Time | On→Off | ms | / | ≤100 |
| Off→On | ms | / | ≤10 |
| Shrinkage | TD | / | % | / | ≤0.2 |
| MD | / | % | / | ≤0.9 |
| Thickness | / | μm | ±5 | 560 |
| Scratch Resistance | / | H | / | 3.0 |
| Silicone Layer Peel Strength | / | g | ±2 | 10 |

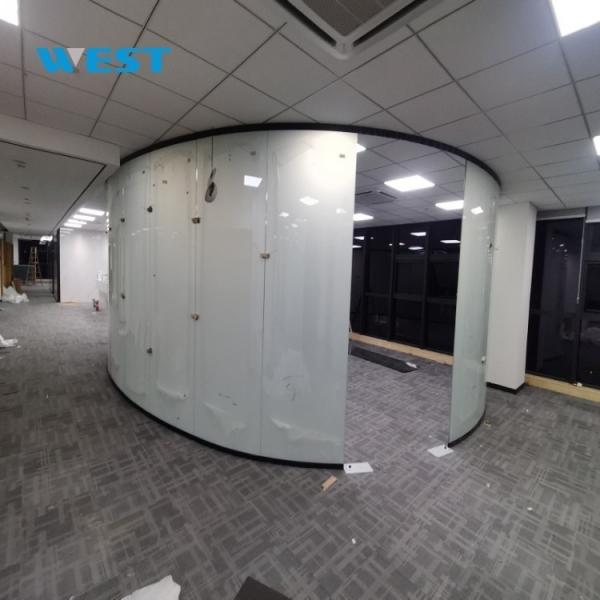

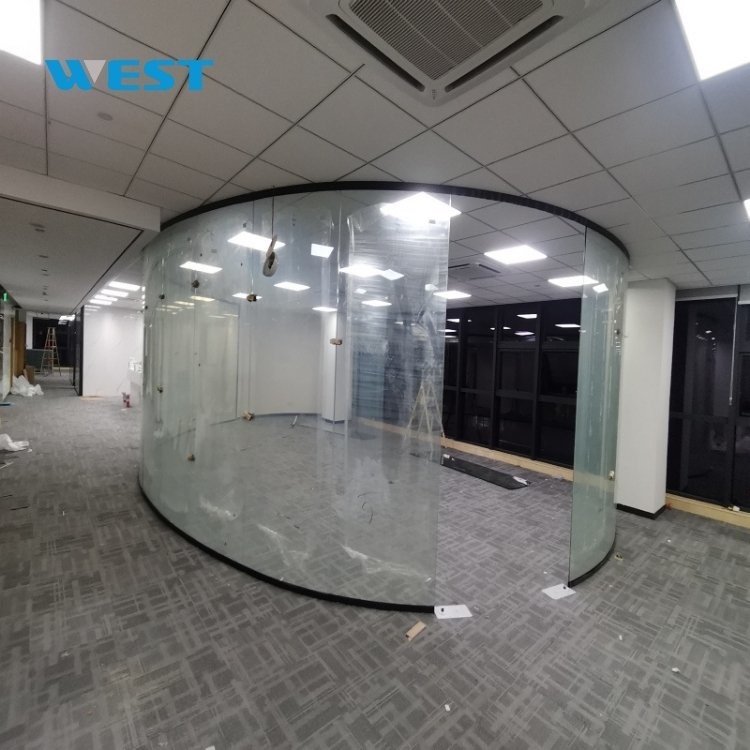

Case Studies

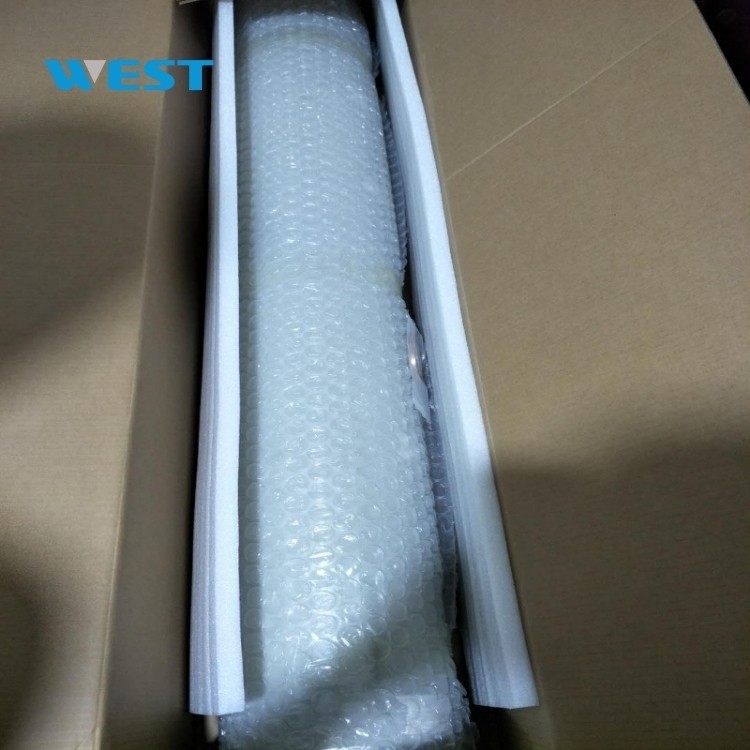

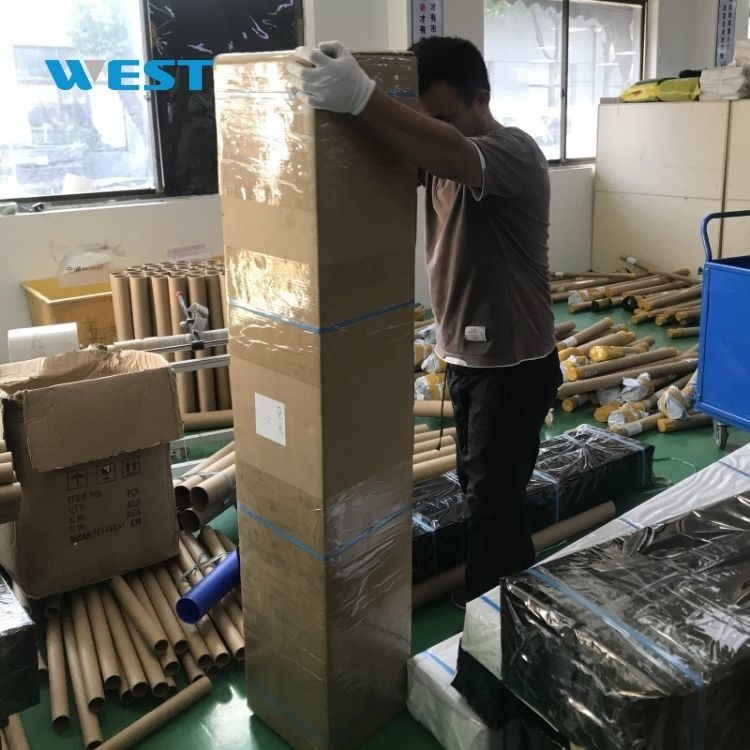

Product Packaging
Accepted Delivery Terms
FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES, and more.
About Westglass:
Westglass specializes in manufacturing and exporting automotive paint protection film (PPF), smart films, intelligent glass, photochromic films, automotive window films, and related products. Our solutions are exported to 50+ countries renowned for superior quality, competitive pricing, and exceptional after-sales service.
Let us be your trusted partner in smart glazing and protective film solutions!
Contact Us
Sales Manager : Cherry Chi
Mob / WhatsApp / WeChat : +86 15553820372
Connect with us today for tailored solutions and global logistics support!
