Core Principle
The Westglass PNLC Reverse Smart Dimming Film (Reverse PDLC Film) achieves intelligent switching between "transparent when power off" and "frosted when power on" through electric field control of liquid crystal molecular alignment, offering an inverse operation compared to traditional PDLC films (frosted when power off, transparent when power on).
With self-adhesive installation, it directly adheres to existing glass surfaces without requiring glass replacement, providing a more cost-effective solution than direct glass replacement while ensuring convenient transportation.
Why Choose Westglass?
1. Extensive Industry Experience
- With 8 years of production and sales expertise, Westglass delivers professional technical support and tailored solutions to clients worldwide.
2. Professional Manufacturing Capability
- Advanced Facilities & Mature Processes: We employ strict three-layer quality control:
- 100% full roll inspection
- Oven baking tests
- Sheet power aging tests
- Customization Options:
o Electrode-integrated sheets (simply provide window dimensions)
o Roll materials (1.2/1.45x30/50m)
o Laser-cut special-shaped sheets (circular, curved, etc.)
3. Ultra-Fast Delivery
- Custom-sized products shipped within 3 working days
- Non-custom products shipped within 1 working day
Core Advantages
1. Energy Efficiency
- Zero Power in Standby: Remains transparent without power, saving ~50% energy compared to traditional PDLC films by only activating when privacy is needed.
- Low-Voltage Operation: Safe for diverse scenarios including homes and offices.
2. High Transparency & Instant Privacy
- 88% Transmittance When Off: Maximizes natural light and glass clarity.
- Instant Frosting (<20ms Response): Achieves immediate privacy, replacing traditional curtains or blinds.
3. Multi-Functional Adaptability
- Smart Control Options: Supports remote, voice, and APP control, compatible with smart home systems for seamless operation.
- Self-Adhesive Design: Directly applies to existing glass without complex installation, with customizable sizes (maximum width: 1.5m).
4. Eco-Friendly & Safe
- 99% UV Blocking & 60%+ Infrared Reduction: Protects furniture and reduces heat radiation.
- Safety Compliance: Shattered glass fragments adhere to the film, meeting safety glass standards and preventing splashes.
5. Versatile Applications
- Office Spaces: Transparent collaboration in meeting partitions, one-touch privacy mode.
- Home Design: Flexible light control for bathrooms, balconies, balancing natural light and privacy.
- Automotive & Commercial: Car sunroofs, window advertising screens, and projection functionality (works as a HD projection screen when power off).
Technical Parameters
| WEST Smart Film Series Same Technical Specifications |
| Item No. | Mode | Unit | Tolerance | Specification |
| Optical Performance | Viewing Angle | On | ° | / | ＞140 |
| Electrical performance | Operate Voltage | On | AC/V | / | 48～65(50/60HZ) |
| Response Time | On→Off | ms | / | ≤200 |
| Off→On | ms | / | ≤10 |
| Power Consumption | On | W/m2 | / | ＜5.0 |
| Heat shrinkage | TD | / | % | / | ≤0.1 |
| MD | / | % | / | ≤0.4 |
| UV Rejection | On/Off | % | / | ≥99 |
| Color Difference △E(reflection) | Off | CIELAB | / | ≤2.5 |
| Working Temperature | / | ℃ | / | -20～75℃ |
| Storage Temperature | / | ℃ | / | -20～70℃ |
| Storage Humidity | / | % | / | 20～60 |
| Lifespan | On | h | / | ＞80000 |
| VLT 91% White Adhesive Smart Film Technical Specifications |
| Item No. | Mode | Unit | Tolerance | Specification |
| Optical performance | VLT | On | % | ±1 | 90 |
| Off | % | / | ＞65 |
| Haze | On | % | ±0.5 | 2.5 |
| Off | % | / | ＞98 |
| Thickness | / | μm | ±5 | 395 |
| VLT 89% Adhesive Smart Film Technical Specifications |
| Item | Mode | Unit | Tolerance | Specification |
| Optical performance | VLT | On | % | / | 87 |
| Off | % | / | 72 |
| Haze | On | % | / | ≤4.0 |
| Off | % | / | ＞98 |
| Thickness | / | μm | ±10 | 479 |
| VLT 89% Non-Adhesive Smart Film Technical Specifications |
| Item | Mode | Unit | Tolerance | Value |
| Optical Performance | VLT | On | % | / | 88 |
| Off | % | / | 72 |
| Haze | On | % | / | ≤3 |
| Off | % | / | ＞98 |
| Thickness | / | μm | ±3 | 394 |
| Smart PNLC Film Technical Specifications |
| Item | Mode | Unit | Tolerance | Specification |
| Optical Performance | VLT | Off | % | / | 88 |
| ON | % | / | 9 |
| Parallel Light Transmission | Off | % | / | 80 |
| On | % | / | 7 |
| Haze | Off | % | / | 10 |
| On | % | / | 92 |
| Electrical Performance | Response Time | On/Off | S | / | 0.5 |
| Weather Resistance Test | / | Hours | / | 2000 |
| Thickness | / | μm | ±10 | 260 |
| Silicon Peeling Force | / | g | / | 10 |
| VLT 83% Non-Adhesive Smart Film Technical Specifications |
| Item No. | Mode | Unit | Tolerance | Specification |
| Optical Performance | VLT | On | % | ±1 | 83 |
| Off | % | / | ＞55 |
| Haze | On | % | ±0.5 | 4.1 |
| Off | % | / | ＞96 |
| Electrical Performance | Response Time | On→Off | ms | / | ≤100 |
| Off→On | ms | / | ≤10 |
| Thickness | / | μm | ±5 | 395 |
| VLT 83% White Adhesive Smart Film Technical Specifications |
| Item No. | Mode | Unit | Tolerance | Specification |
| Optical Performance | VLT | On | % | ±1 | 83 |
| Off | % | / | ＞55 |
| Haze | On | % | ±0.5 | 4.3 |
| Off | % | / | ＞96 |
| Electrical performance | Operate Voltage | On | AC/V | / | 48～65(50/60HZ) |
| Response Time | On→Off | ms | / | ≤100 |
| Off→On | ms | / | ≤10 |
| Shrinkage | TD | / | % | / | ≤0.2 |
| MD | / | % | / | ≤0.9 |
| Thickness | / | μm | ±5 | 560 |
| Scratch Resistance | / | H | / | 3.0 |
| Silicone Layer Peel Strength | / | g | ±2 | 10 |

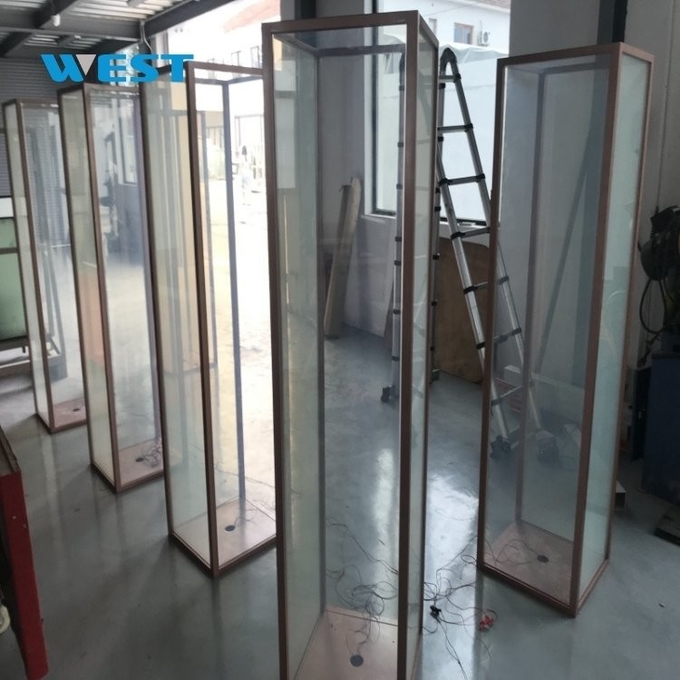

Case Studies

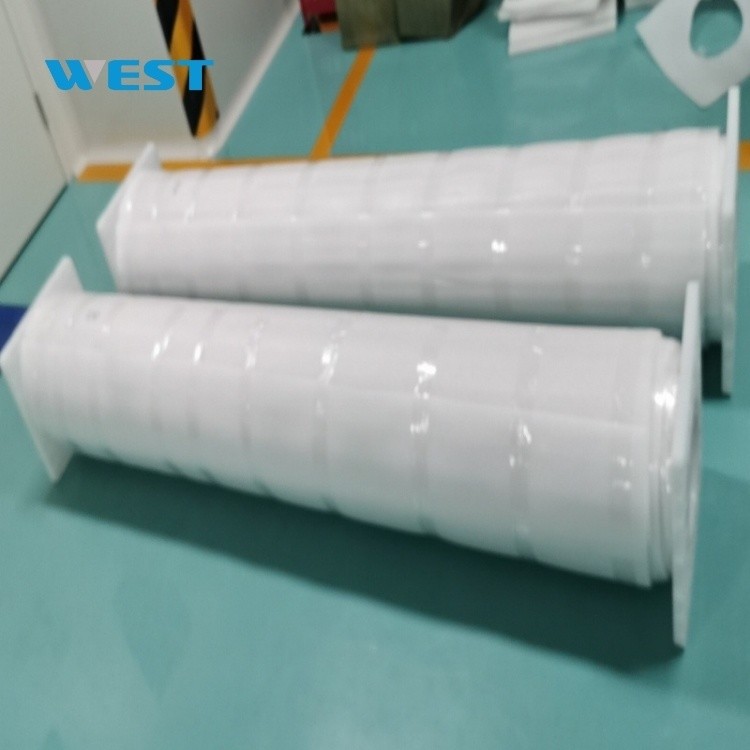

Product Packaging
Accepted Delivery Terms
FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES, and more.
About Westglass:
Westglass specializes in manufacturing and exporting automotive paint protection film (PPF), smart films, intelligent glass, photochromic films, automotive window films, and related products. Our solutions are exported to 50+ countries renowned for superior quality, competitive pricing, and exceptional after-sales service.
Let us be your trusted partner in smart glazing and protective film solutions!
